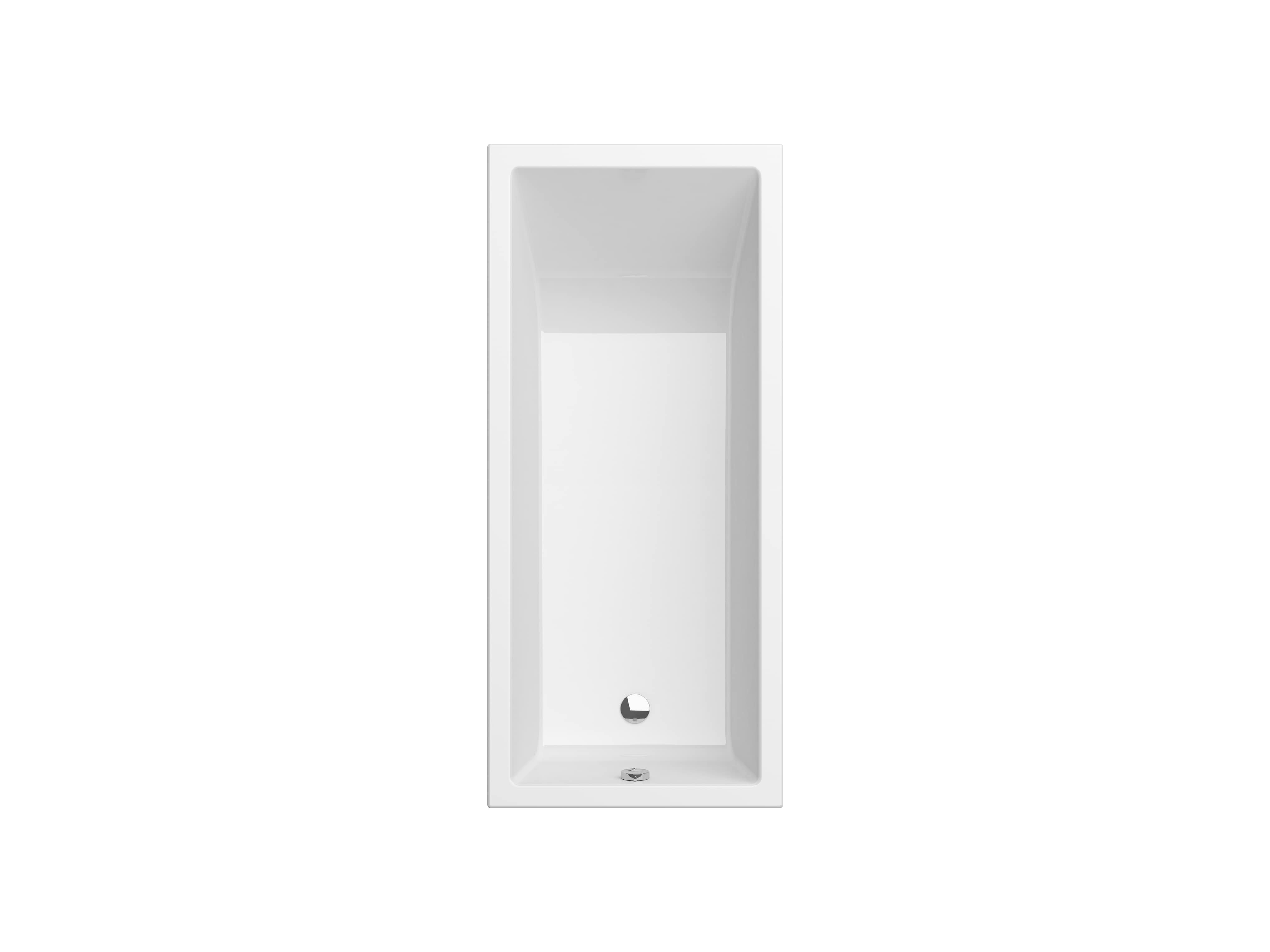

CUBIC
Art. Nº: S20024600000000

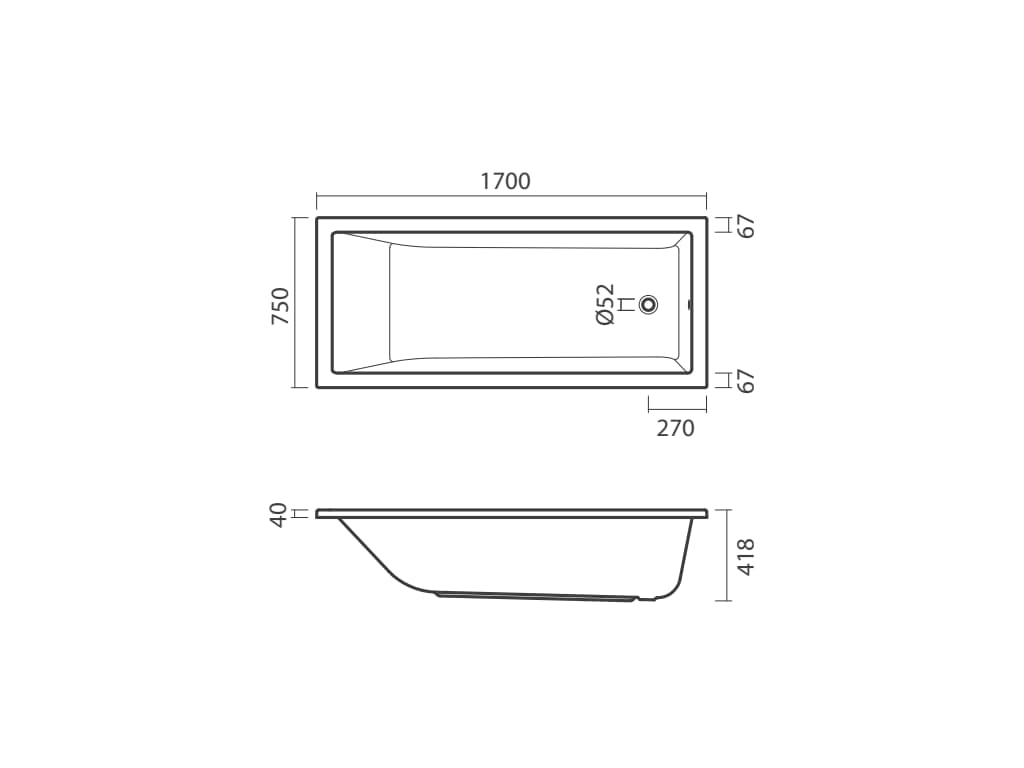

Made of acrylic. Rectangular - 1700 x 750mm - with smooth surface. Without whirpool system. Free-standing (against at least 2 walls) or recessed. Requires Ø55mm waste, feet or support structure for installation. Compatible with its own acrylic panels. Capacity: 206 liters. In the packaging: bathtub.
Bath height with mounted panel (inch): 19 11/16"
Bath height with mounted panel (inch): 19.68
Bath height with mounted panel (mm): 500
Height (INCH): 16 9/16"
Inside height (inch): 16 1/8"
Inside height (inch): 16.14
Inside height (mm): 410
Inside length (inch): 61 5/8"
Inside length (inch): 61.61
Inside length (mm): 1565
Inside width (inch): 26.61
Inside width (inch): 26 5/8"
Inside width (mm): 676
Installation legs: Optional legs
Length (INCH): 66 15/16"
Material: Acrylic
People capacity: 1
Shape: Rectangular
Water capacity (G.): 54.42
Water capacity (l): 206
Width (INCH): 29 1/2"
details
Bath height with mounted panel (inch)
19 11/16"
19.68
Bath height with mounted panel (mm)
500
Height (INCH)
16 9/16"
Inside height (inch)
16 1/8"
16.14
Inside height (mm)
410
Inside length (inch)
61 5/8"
61.61
Inside length (mm)
1565
Inside width (inch)
26.61
26 5/8"
Inside width (mm)
676
Installation legs
Optional legs
Length (INCH)
66 15/16"
Material
Acrylic
People capacity
1
Shape
Rectangular
Water capacity (G.)
54.42
Water capacity (l)
206
Width (INCH)
29 1/2"
manual
If you cannot find your installation or maintenance manual, you can contact our Customer Service through the contact form indicating the product reference for which you need the manual.
BIM - ARCHICAD
BIM - REVIT
2D and 3d Resources
Installation Handbook
Product Technical Fact Sheet - Documents
CAROLINA
1700 x 462
1500 x 420
1600 x 420
1700 x 420
1400 x 420
1800 x 420
With minimalist design and exceptional comfort, the Cubic bathtubs offer versatility with simple and hydromassage versions, while the compact wall-mounted basins complete the collection for modern, functional bathrooms.
